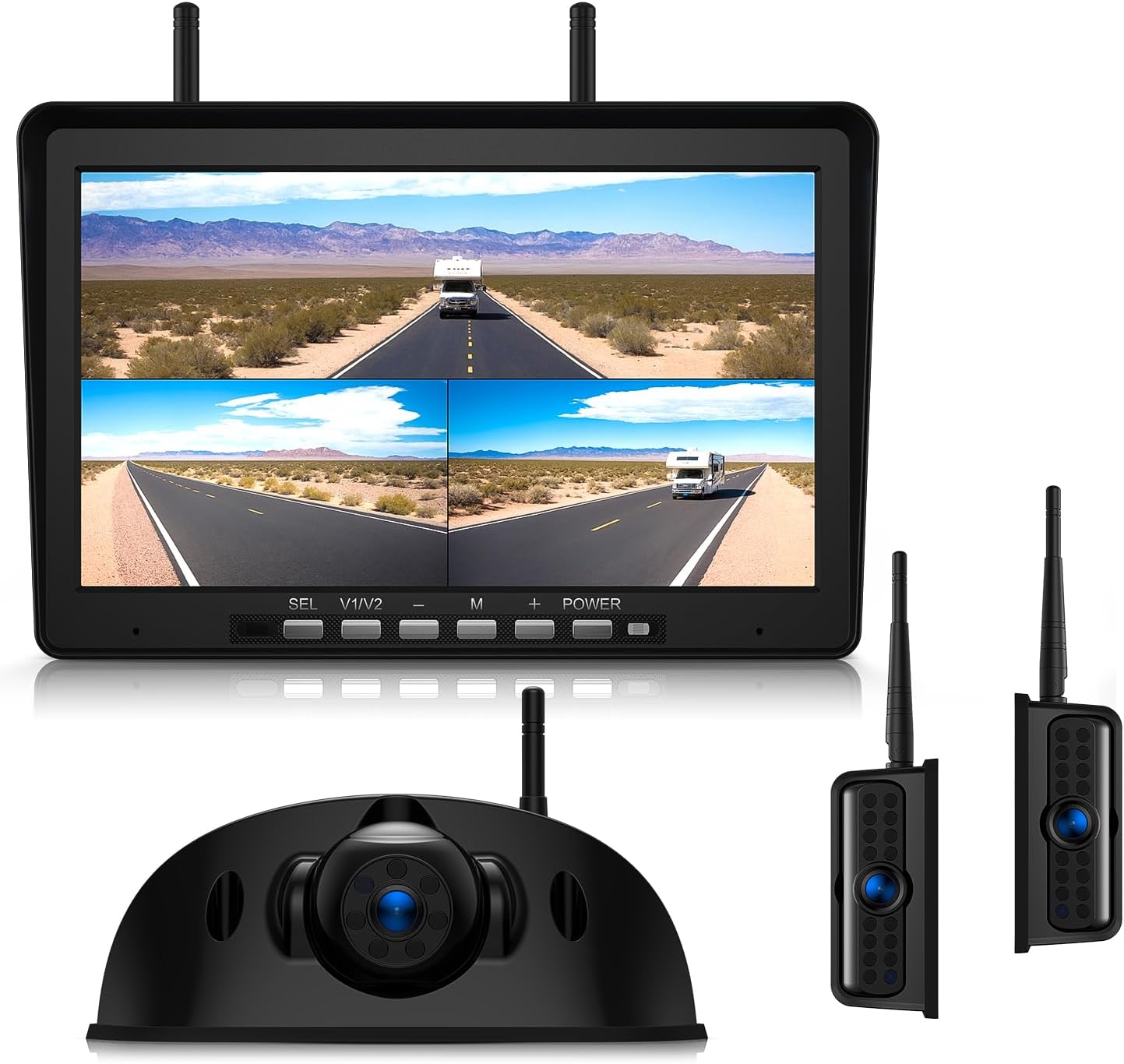

10.1" RV Backup Camera Wireless System Plug and Play, Pre-Wired for Furrion RV Trailer Camper Motorhome, HD 1080P Split-Screen DVR Monitor with 1 Rear View & 2 Side View Cameras, BY503

Overview

• Brand : ZEROXCLUB
• Screen Size : 10.1 Inches
• Product Dimensions : 10.1"L x 2.75"W x 6.7"H
• Compatible Devices : Monitor
• Installation Type : Roof Mount
• Video Capture Resolution : 1080p
• Voltage : 12 Volts
• Optical Sensor Technology : CMOS
• Lens Type : Fixed Wide Angle
• Real Angle of View : 120 Degrees

About this item

• Easy to Install: Rear view camera is compatible with Furrion pre-wired plug and mounting holes for easy installation, no additional drilling required (Side view camera is not compatible with Furrion pre-wired mounting holes, only with plug). For installation in other vehicles that don't have Furrion pre-wired brackets it's also easy, screw in the camera and connect it to the vehicle's power supply or lights.

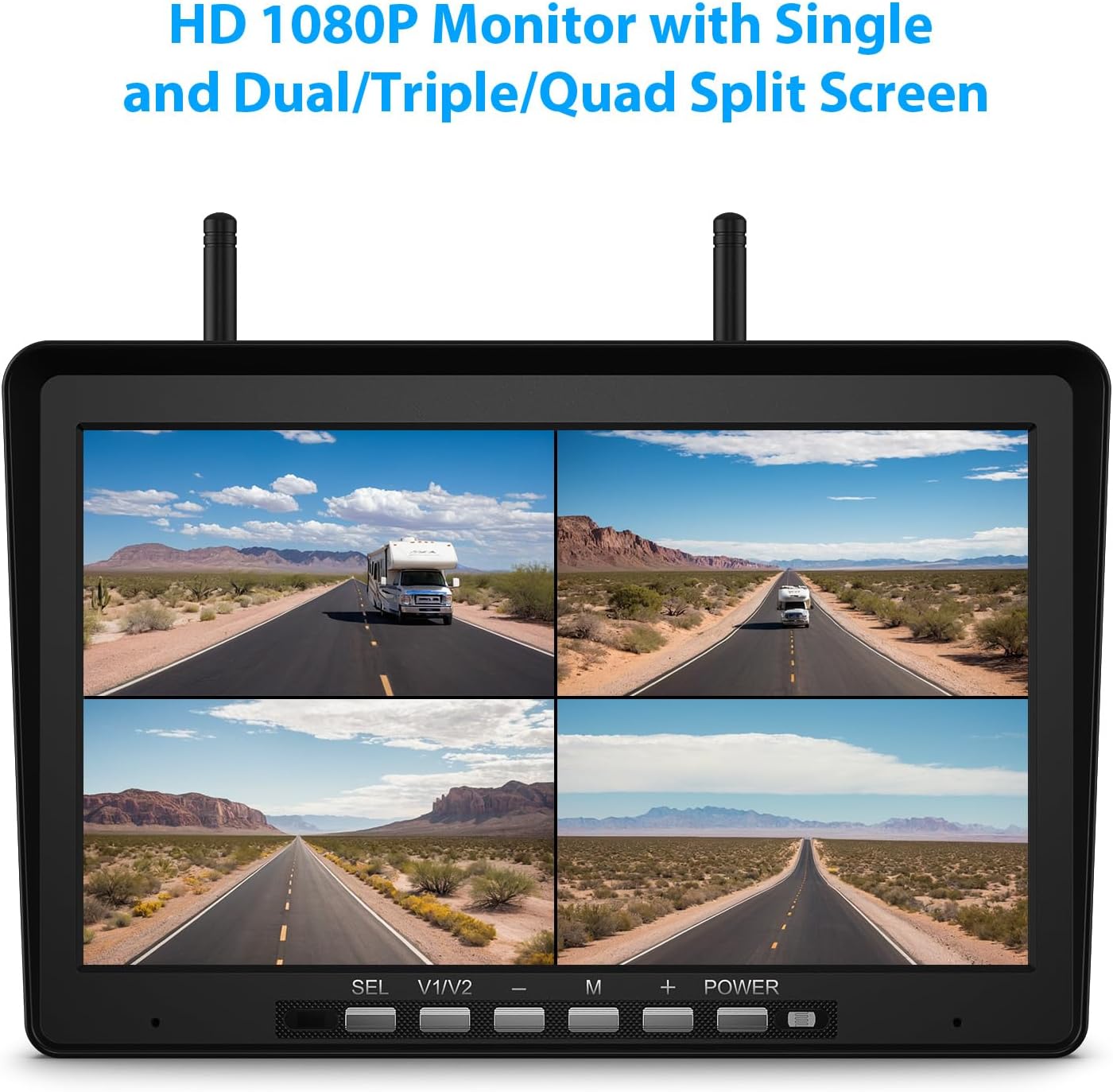

• 10.1" HD 1080P Monitor: The screen can display images in HD 1080P resolution with a clearer detail view. The rv backup camera system supports up to 4 cameras, which could be setup for dual/triple/quad screen for multiple cameras monitoring at the same time. You can insert a memory card and then the system can be used as a dash cam with video recording capabilities.
• IP69K Waterproof Rearview & Sideview Camera: With IP69K waterproof standard, the wireless backup camera can work in extreme weather. No water ingress or fogging issues. System with rear-view and side-view cameras reduces blind spots/blind zones while driving, it automatically turns on IR lights in low light conditions. The system comes with 1 rear view camera and 2 side view cameras, if you need to add more cameras, please contact us to purchase separately.
• Dual Antennas Design with Stable Signal: Built-in a signal booster receiver for fast and stable transmission without image freezing, the transmission distance can reach 220 feet (open distance), 50ft on vehicle for reversing and 36ft on vehicle for continuously use. Even at highway speeds, it displays images in real time without screen freezing or lagging.
• Wide Compatibility: Wireless means that the system transmits the camera images to the screen via wireless signals. Cameras and monitors need to be connected to a power supply via a power cord to get power. Voltage range is DC 12-24V. Suitable for RVs, 5th Wheels, trucks, travel trailers, campers, buses, etc.
• For GMC/Chevrolet/Ford Owners: Newer GM vehicles use PWM power signals that will disrupt video transmission, causing flickering or signal loss. For stable performance, we recommend adding a Furrion 7-way adapter (not included) or 12V PWM filter (not included). These accessories clean the power supply for reliable operation. Tip: Not required for most other vehicle brands. To identify if PWM in your vehicle. Check your vehicle manual or ask your dealer about "PWM tail lights".
